Rowing Timing System

Rowing Timing System is an automatic timing system, which combines the software and hardware and uses high-speed color CCD digital camera. It can realize the automation of the measurement process, so as to ensure the fairness of the process and outcome of the match.

Rowing Timing Software

Rowing Timing Software Features:
  • Support the simultaneous operation of shooting and score interpretation.
  • When the computer crashes and the software is restarted, the timing can be restored with one click.
  • The accuracy of score output is 0.0001s ~ 1s.
  • Multiple orders and reset the order time.
  • Support zero time calibration function.
  • Support stop timing to continue shooting.
  • Support automatic image clipping and filtering redundant images.
  • Support large screen display of scores and images.
  • Support automatic scoring.
  • Support the printing of transcripts and the generation of Excel sheets and TXT documents.
  • Support selecting wrong groups and associating images with corresponding groups after the competition.
    		•

    Automatic Starting System

    Automatic Starting System Specification:
    Model: KS-STM100
    Size of starting host: 23×13.5×5.5 CM
    Weight: 1.5 KG
    Size of speaker: 31×26×33 CM
    Weight: 7 KG
    		Features:
  • Support electronic starting gun.
  • The starting distance is up to 2000 meters.
  • Support wireless start button.
  • Support microphone voice input.
  • Voice and starting shot dual output.
  • The host can work continuously for 8 hours without external power.
  • The sound can work continuously for 8 hours without external power.
  • Support zero calibration of electric meter.
  • Support multiple orders and multiple trigger record storage.
    		•

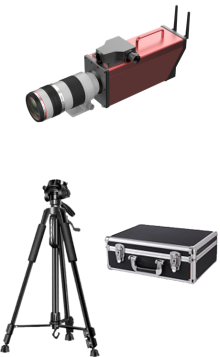

    Color Finish Arrival Camera

    Color Finish Arrival Camera Specification:
    Model: KS-PHFC10
    Host size: 29.8×14×15.6 CM
    Weight: 2 KG
    Power: 14.8-16.8V / 1-2A
    Display: Full color image
    		Features:
  • Support image automatic exposure processing.
  • Support positioning athlete sprint image.
  • Support front capture sprinter chest number cloth.
  • Support multiple orders and reset the order time.
  • Support zero time calibration function.
  • Support stop timing to continue shooting.
  • Support image local magnification function.
  • Automatic image clipping to filter redundant images.
  • Support remote interpretation: one computer for shooting and another computer for interpretation.
  • Support thumbnail display to quickly locate athletes.
  • Support video playback.
  • Support PNG and BMP image generation.
    		•

    Meet Management Server (OVR)

    Meet Management Server (OVR) Specification:
    Model: KS-MMS-MINI
    Size: 260x135x35 (mm)
    Weight: 1.0 KG
    		Features:
  • Easy to create a match, and import the match entry information.
  • Schedule the match with variants of competition systems. Including elimination, round-robin, etc.
  • Provide the match information to the scoring software on each venue/court.
  • Gather the real time score and statistics information from the scoring software. Monitor the progress of the match.
  • Summary and print integrated report.
  • Generate standard reports for the match, including start-list, results, combined results, ranking, etc.
  • Print certifications with adjustable print templates.
  • Print the team score report.
  • Open interface with ODF compatible data feed.
