Sprint Canoe Scoring System

Sprint Canoe Scoring System Diagram

Slalom Canoe Scoring System

Slalom Canoe Scoring System Diagram


Match Timing Software

Match Timing Software Features:
  • Support the simultaneous operation of shooting and score interpretation.
  • When the computer crashes and the software is restarted, the timing can be restored with one click.
  • The accuracy of score output is 0.0001s ~ 1s.
  • Multiple orders and reset the order time.
  • Support zero time calibration function.
  • Support stop timing to continue shooting.
  • Support automatic image clipping and filtering redundant images.
  • Support large screen display of scores and images.
  • Support automatic scoring.
  • Support the printing of transcripts and the generation of Excel sheets and TXT documents.
  • Support selecting wrong groups and associating images with corresponding groups after the competition.
    		•

    Automatic Starting System

    Automatic Starting System Specification:
    Model: KS-STM100
    Size of starting host: 23×13.5×5.5 CM
    Weight: 1.5 KG
    Size of speaker: 31×26×33 CM
    Weight: 7 KG
    		Features:
  • Support electronic starting gun.
  • The starting distance is up to 2000 meters.
  • Support wireless start button.
  • Support microphone voice input.
  • Voice and starting shot dual output.
  • The host can work continuously for 8 hours without external power.
  • The sound can work continuously for 8 hours without external power.
  • Support zero calibration of electric meter.
  • Support multiple orders and multiple trigger record storage.
    		•

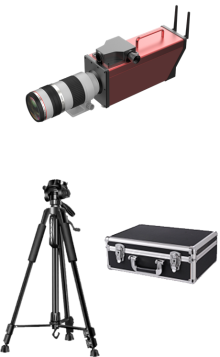

    Color Finish Arrival Camera

    Color Finish Arrival Camera Specification:
    Model: KS-PHFC10
    Host size: 29.8×14×15.6 CM
    Weight: 2 KG
    Power: 14.8-16.8V / 1-2A
    Display: Full color image
    		Features:
  • Support image automatic exposure processing.
  • Support positioning athlete sprint image.
  • Support front capture sprinter chest number cloth.
  • Support multiple orders and reset the order time.
  • Support zero time calibration function.
  • Support stop timing to continue shooting.
  • Support image local magnification function.
  • Automatic image clipping to filter redundant images.
  • Support remote interpretation: one computer for shooting and another computer for interpretation.
  • Support thumbnail display to quickly locate athletes.
  • Support video playback.
  • Support PNG and BMP image generation.
    		•

    Meet Management Server (OVR)

    Meet Management Server (OVR) Specification:
    Model: KS-MMS-MINI
    Size: 260x135x35 (mm)
    Weight: 1.0 KG
    		Features:
  • Easy to create a match, and import the match entry information.
  • Schedule the match with variants of competition systems. Including elimination, round-robin, etc.
  • Provide the match information to the scoring software on each venue/court.
  • Gather the real time score and statistics information from the scoring software. Monitor the progress of the match.
  • Summary and print integrated report.
  • Generate standard reports for the match, including start-list, results, combined results, ranking, etc.
  • Print certifications with adjustable print templates.
  • Print the team score report.
  • Open interface with ODF compatible data feed.
    • Learn more...
